EmptyState macrolite

A centred icon, title and explanation for an empty list, with an optional action.

Built from: Box Button Icon Text
Children: none

Preview

Loading the renderer…

iconrequired

titlerequired

description

actionLabel

createSurface + updateComponents, A2UI v0.9.

json

[
  {
    "version": "v0.9",
    "createSurface": {
      "surfaceId": "preview",
      "catalogId": "https://ui.exponential.at/catalogs/core/v1"
    }
  },
  {
    "version": "v0.9",
    "updateComponents": {
      "surfaceId": "preview",
      "components": [
        {
          "id": "root",
          "component": "Stack",
          "direction": "vertical",
          "align": "stretch",
          "children": [
            "example"
          ]
        },
        {
          "id": "example",
          "component": "EmptyState",
          "icon": "nav-inbox",
          "title": "No notifications",
          "description": "You are all caught up."
        }
      ]
    }
  }
]

This surface through a MemoryTransport. Install and transports: React guide.

This surface through a MemoryTransport. Install and transports: SwiftUI guide.

This surface through a MemoryTransport. Install and transports: Compose guide.

This surface through a MemoryTransport. Install and transports: gpui guide.

Platforms

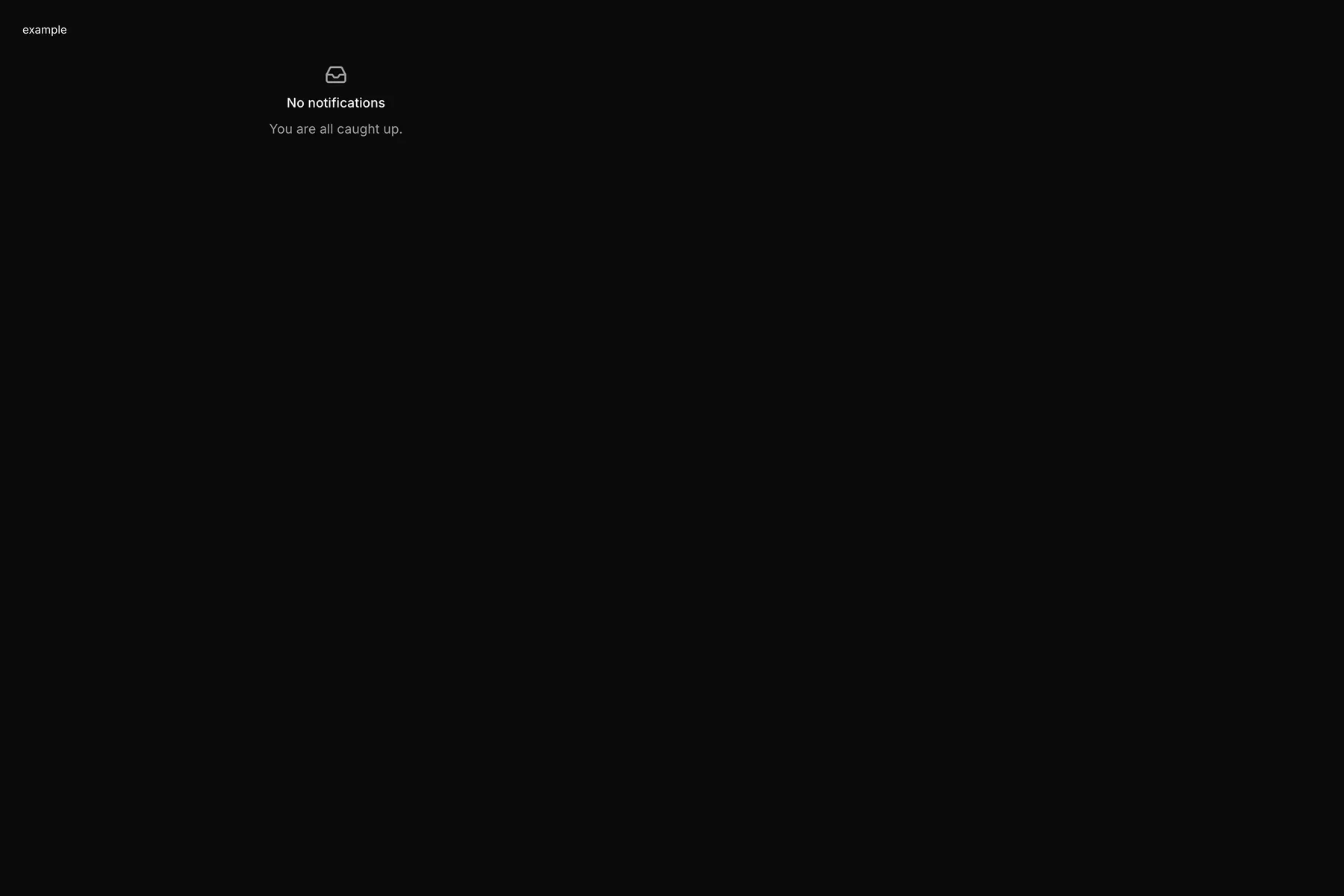

EmptyState rendered by the React renderer on Web — **Web** React

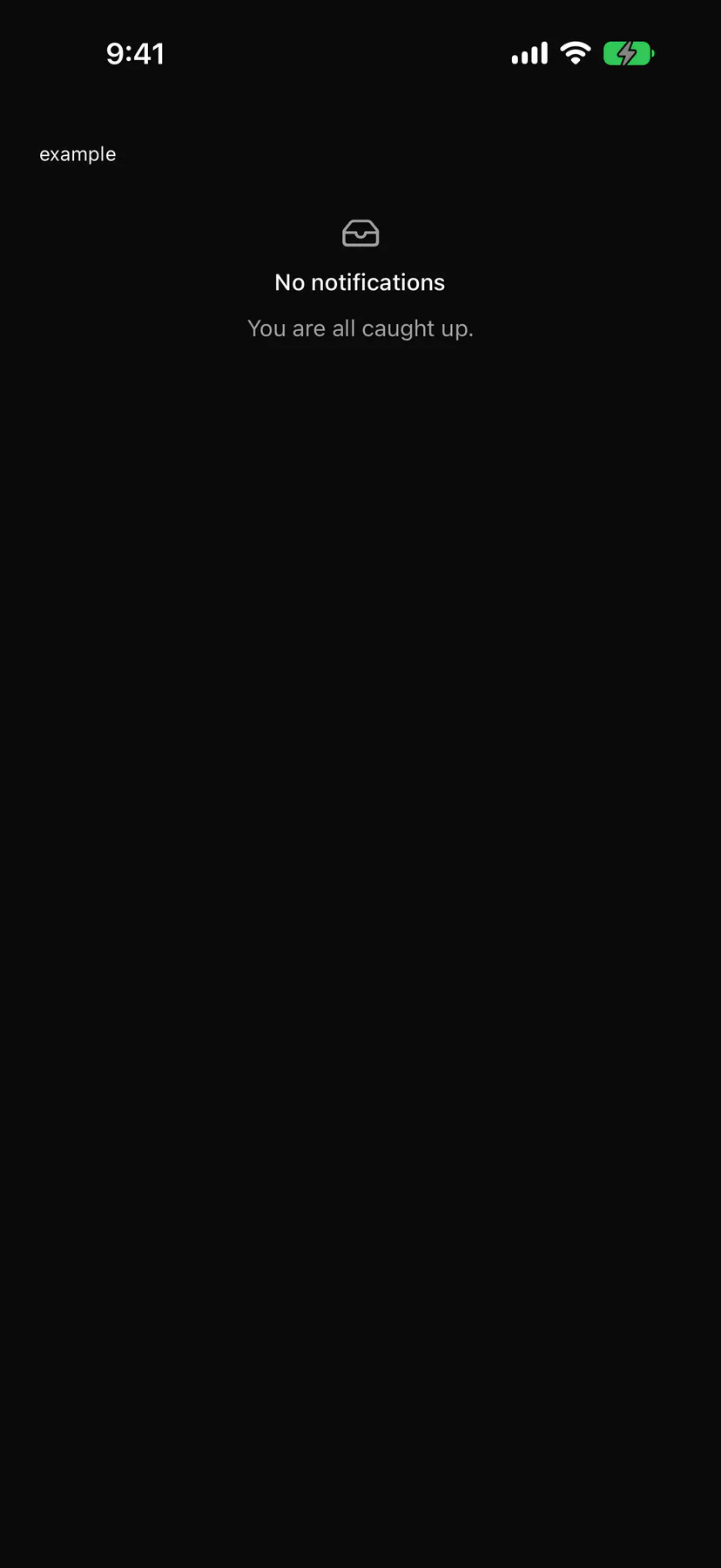

EmptyState rendered by the SwiftUI renderer on iOS — **iOS** SwiftUI

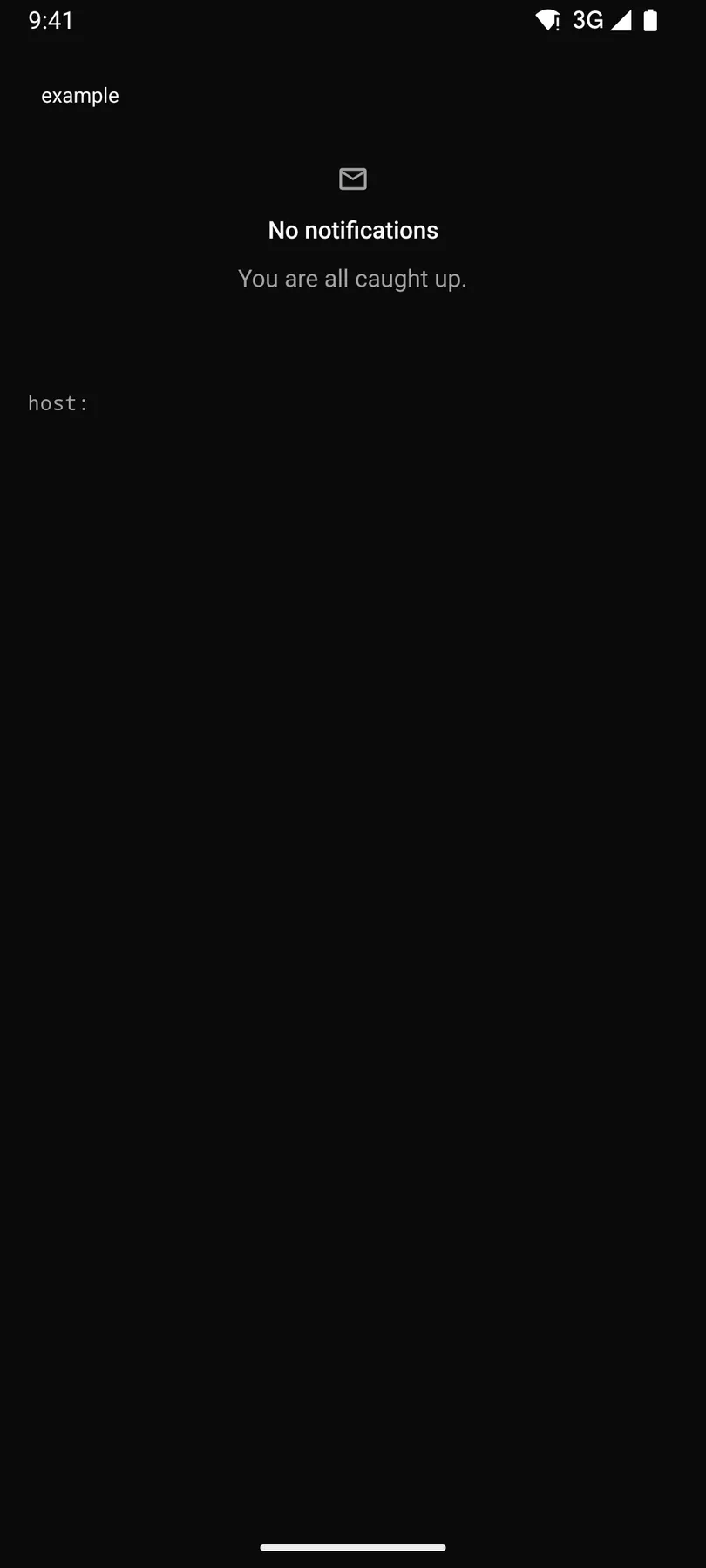

EmptyState rendered by the Compose renderer on Android — **Android** Compose

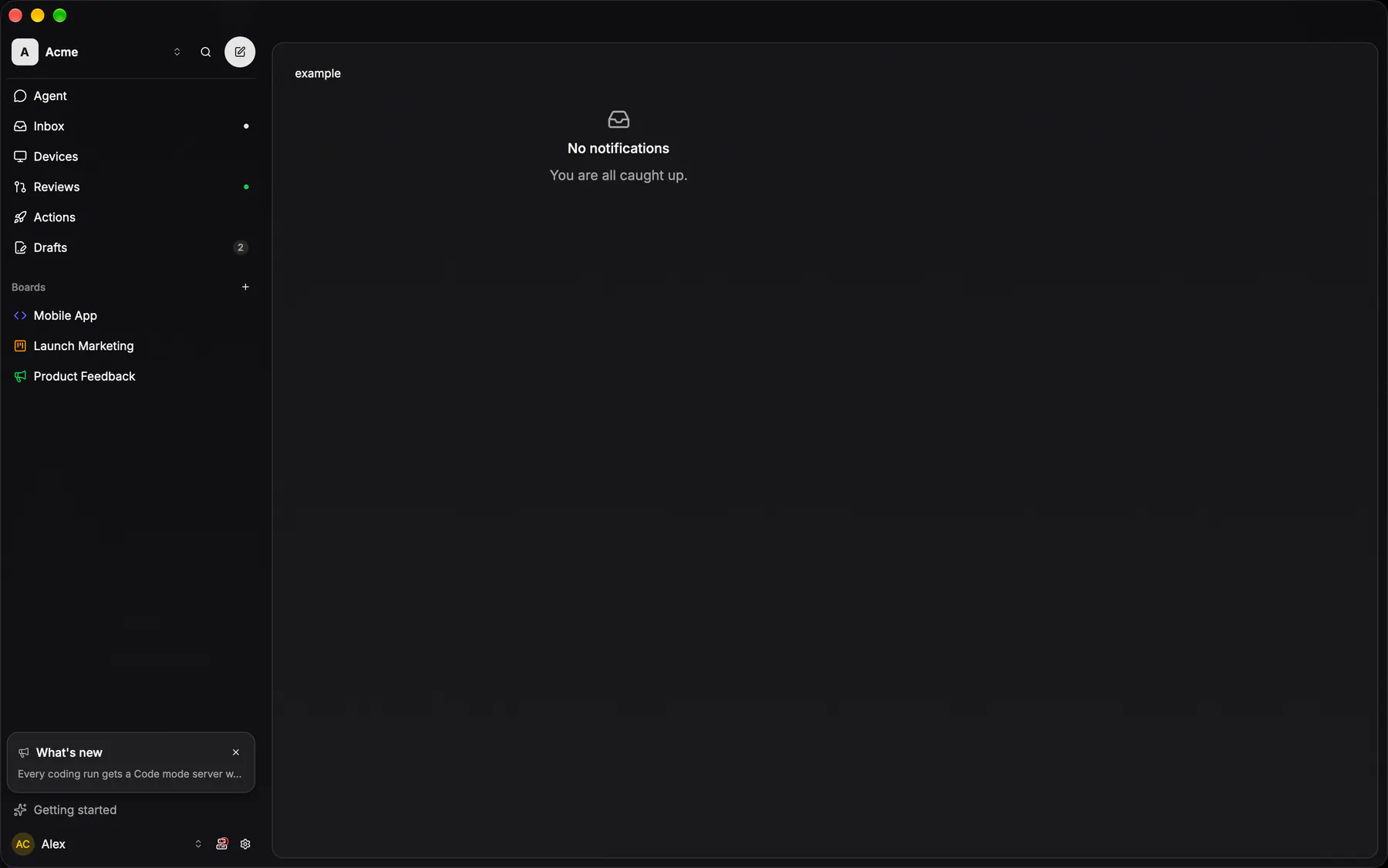

EmptyState rendered by the gpui renderer on Desktop — **Desktop** gpui

View exponential-ui-empty-state, painted by each native renderer.

Props

Prop	Type	Default	Description
`icon`required	`icon`	–	The large glyph.
`title`required	`string`	–	What is empty.
`description`	`string`	–	Why, or what to do next.
`actionLabel`	`string`	–	A button label; pressing it fires `press`.

Events and slots

Name	Kind
`on.press`	event: runs an action

Accessibility

Role: status
Semantics: status; the action = button

Keys	Action
–	Enter, Space on the action

Theming

Recipe parts: EmptyState/rootEmptyState/iconEmptyState/titleEmptyState/descriptionEmptyState/action
Keyed by: :hover:pressed:focus:disabled:checked:open:selected:invalid:dragover

Themes · Write a theme

In the Exponential app

Empty state

What a PAGE says when it has nothing: the 48px icon disc, one semibold title, one muted sentence that TEACHES the next step rather than restating the emptiness, and an optional actions slot under it — all on a centred column of at most 28rem.

Never a bare "No results". Its in-list sibling is `ListEmpty` (same file, its own entry below): one muted line inside a list that filtered down to nothing, where a teaching block would be wrong. The third of them is `EmptyCta` (EXP-962, next entry): the dashed box that STARTS the list, where the empty state itself is the button.

Webok

EmptyStatepackages/ui/src/empty-state.tsx

iOSleftover

InboxView.emptyStateapps/ios/Exponential/UI/Inbox/InboxView.swift

every screen rolls its own private empty state (inbox, reviews, actions, my issues); there is no shared symbol

Androidleftover

EmptyStateapps/android/app/src/main/java/com/exponential/app/ui/components/Scaffolding.kt

a bare 28dp tinted glyph instead of the 48 disc, and its parameters are message/detail rather than title/description

Desktopok

controls::feedback::empty_stateapps/desktop/crates/exponential-ui-gpui/src/controls/feedback.rs

Empty call to action

EXP-962: the third empty, and the only one that is a BUTTON.

A dashed, full-width box standing exactly where the first row will go — a 16px glyph, one title line, one muted sentence under it, the row wash and full-strength text on hover. Dashed because it is a placeholder for the row it invites; clickable because the shortest path to that row is the box itself. `EmptyState` teaches a PAGE with nothing on it, `ListEmpty` reports a list that filtered down to nothing, and this one STARTS a list: the actions panel's "describe one" nudge is the call site it was cut from.

Webok

EmptyCtapackages/ui/src/empty-state.tsx

EmptyState and ListEmpty are the other two, in the same file

iOSn/a

the creator run needs a device: ActionsListView.emptyState is a read-only page empty instead

Androidn/a

same: ActionsScreen's ActionsEmptyState reads, it does not invite — creation lives on web or desktop

Desktopok

ActionsView::render_nudgeapps/desktop/crates/ui/src/actions_view.rs

the same dashed strip under the actions list, opening the creator run

In-list empty line

The compact sibling of the empty state: one muted centred line INSIDE a list that filtered down to nothing, exactly the line `CommandEmpty` draws, for the lists that have no Command around them.

It is deliberately not the teaching block — a search that matched nothing needs a different QUERY, not a next step, and a 48px icon disc under a search field reads as a page having gone wrong.

Webok

ListEmptypackages/ui/src/empty-state.tsx

EmptyState in the same file is the page-sized one

iOSleftover

Text("No emoji found")apps/ios/Exponential/UI/Markdown/EmojiPickerSheet.swift

every list inlines its own Text: there is no shared line, and DeviceLogins.emptyLine is a private third copy

Androidleftover

ChangesEmptyRowapps/android/app/src/main/java/com/exponential/app/ui/work/GuideSectionDiff.kt

private to the Guide section page; the emoji sheet writes its own line, and EmptyState (Scaffolding.kt) is page-sized

Desktopok

pickers::empty_picker_rowapps/desktop/crates/ui/src/pickers.rs

the CommandEmpty row every picker shares; controls::empty_state is the page-sized counterpart
