Progress macrolite

A horizontal progress bar with an optional label.

Built from: Box Text
Children: none

Preview

Loading the renderer…

valuerequired

max

label

tone

createSurface + updateComponents, A2UI v0.9.

json

[
  {
    "version": "v0.9",
    "createSurface": {
      "surfaceId": "preview",
      "catalogId": "https://ui.exponential.at/catalogs/core/v1"
    }
  },
  {
    "version": "v0.9",
    "updateComponents": {
      "surfaceId": "preview",
      "components": [
        {
          "id": "root",
          "component": "Stack",
          "direction": "vertical",
          "align": "stretch",
          "children": [
            "example"
          ]
        },
        {
          "id": "example",
          "component": "Progress",
          "value": 65,
          "max": 100,
          "label": "Upload"
        }
      ]
    }
  }
]

This surface through a MemoryTransport. Install and transports: React guide.

This surface through a MemoryTransport. Install and transports: SwiftUI guide.

This surface through a MemoryTransport. Install and transports: Compose guide.

This surface through a MemoryTransport. Install and transports: gpui guide.

Platforms

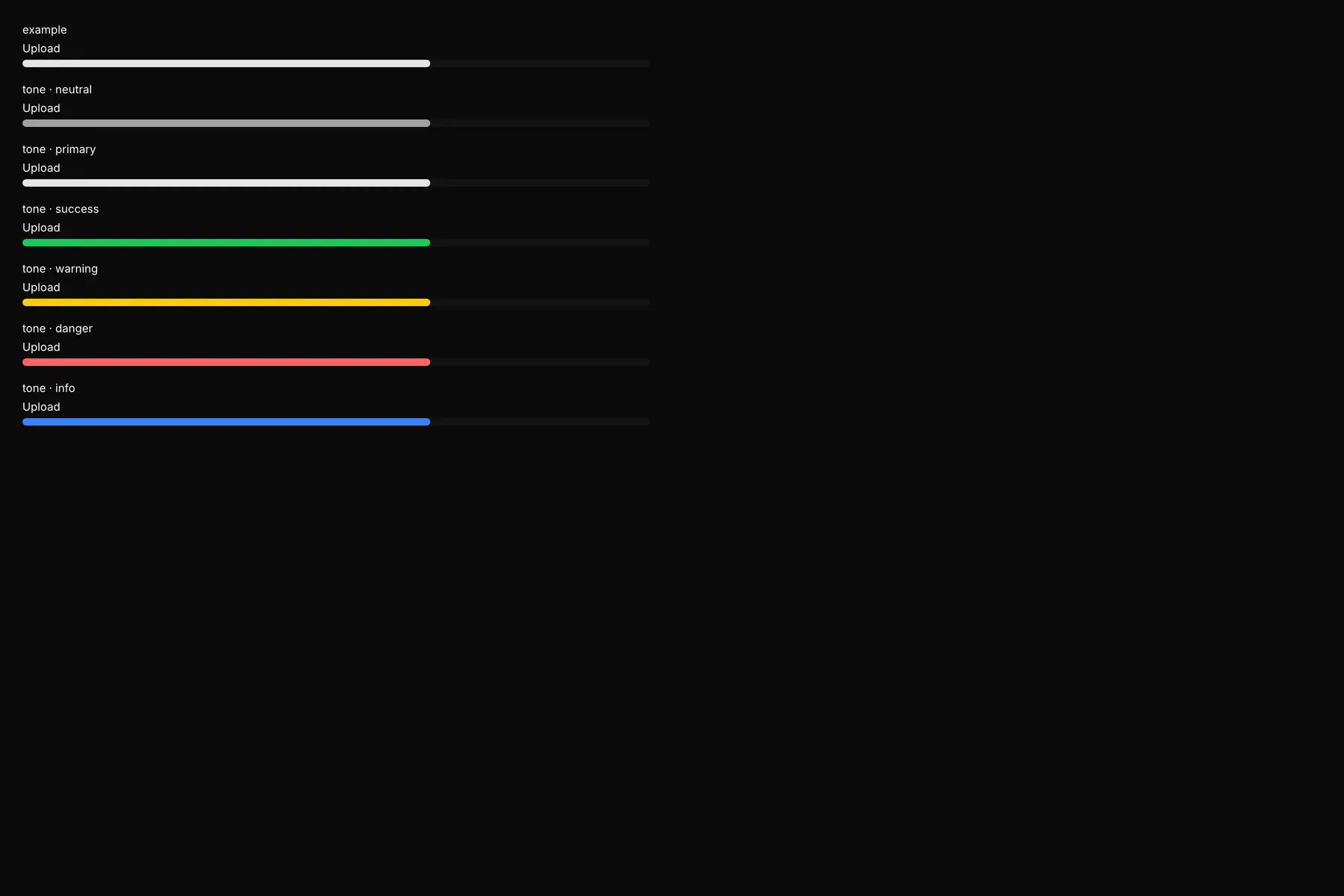

Progress rendered by the React renderer on Web — **Web** React

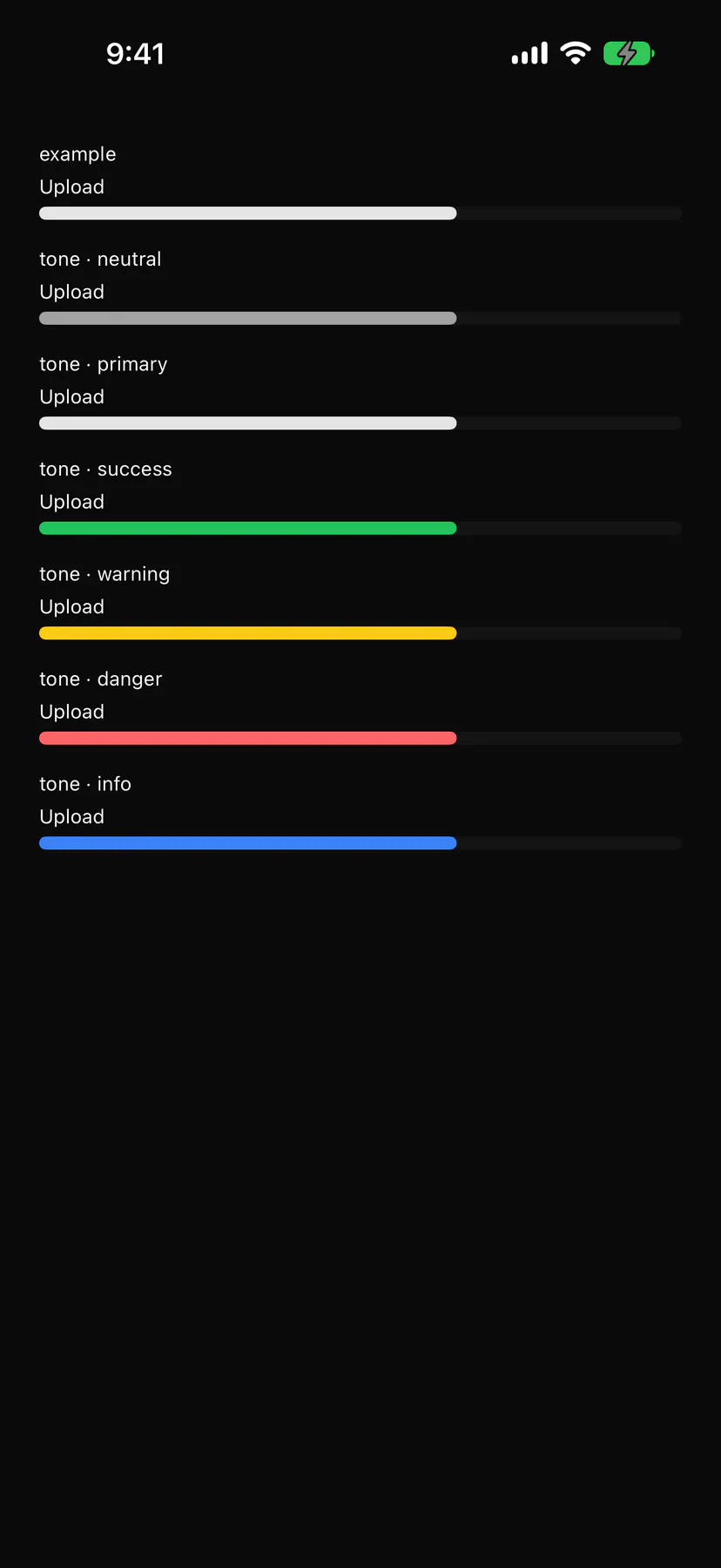

Progress rendered by the SwiftUI renderer on iOS — **iOS** SwiftUI

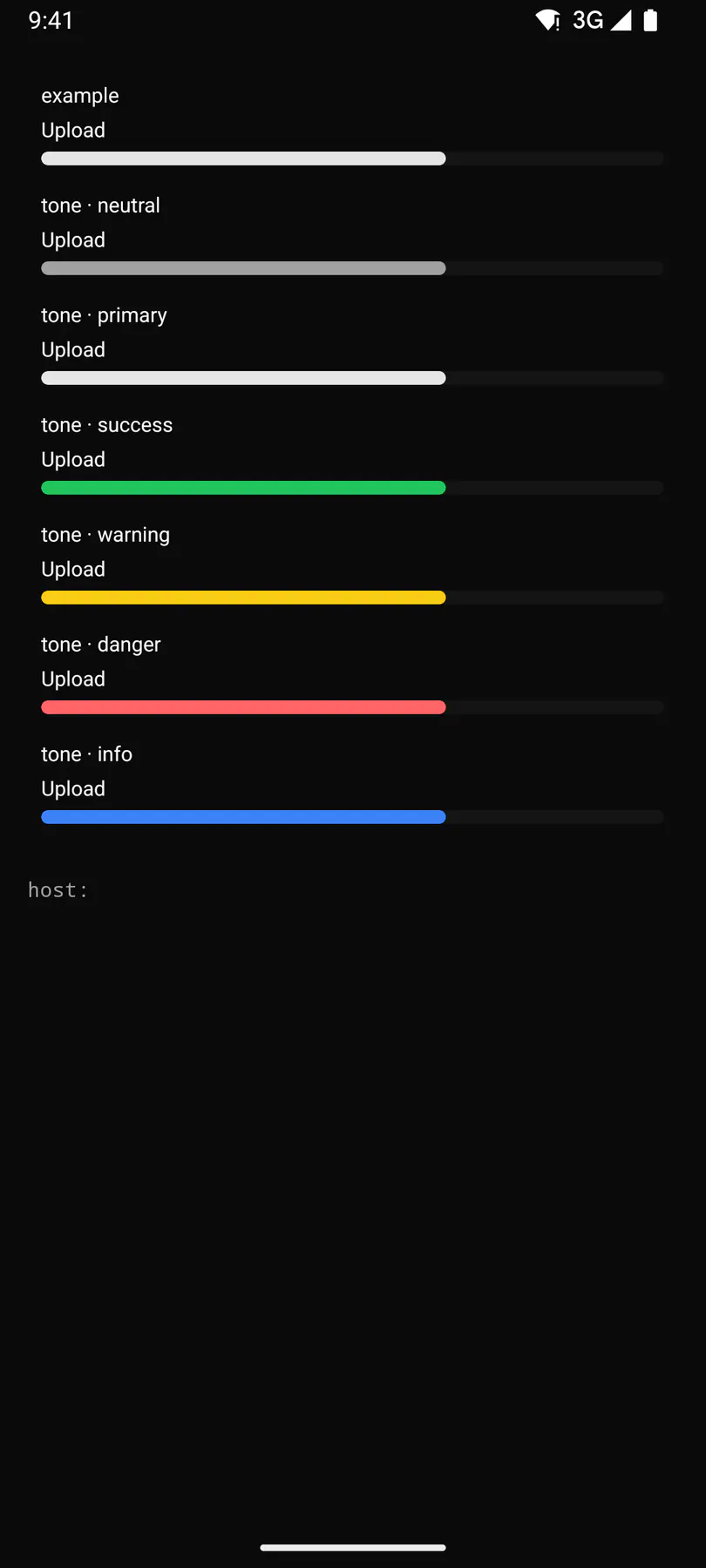

Progress rendered by the Compose renderer on Android — **Android** Compose

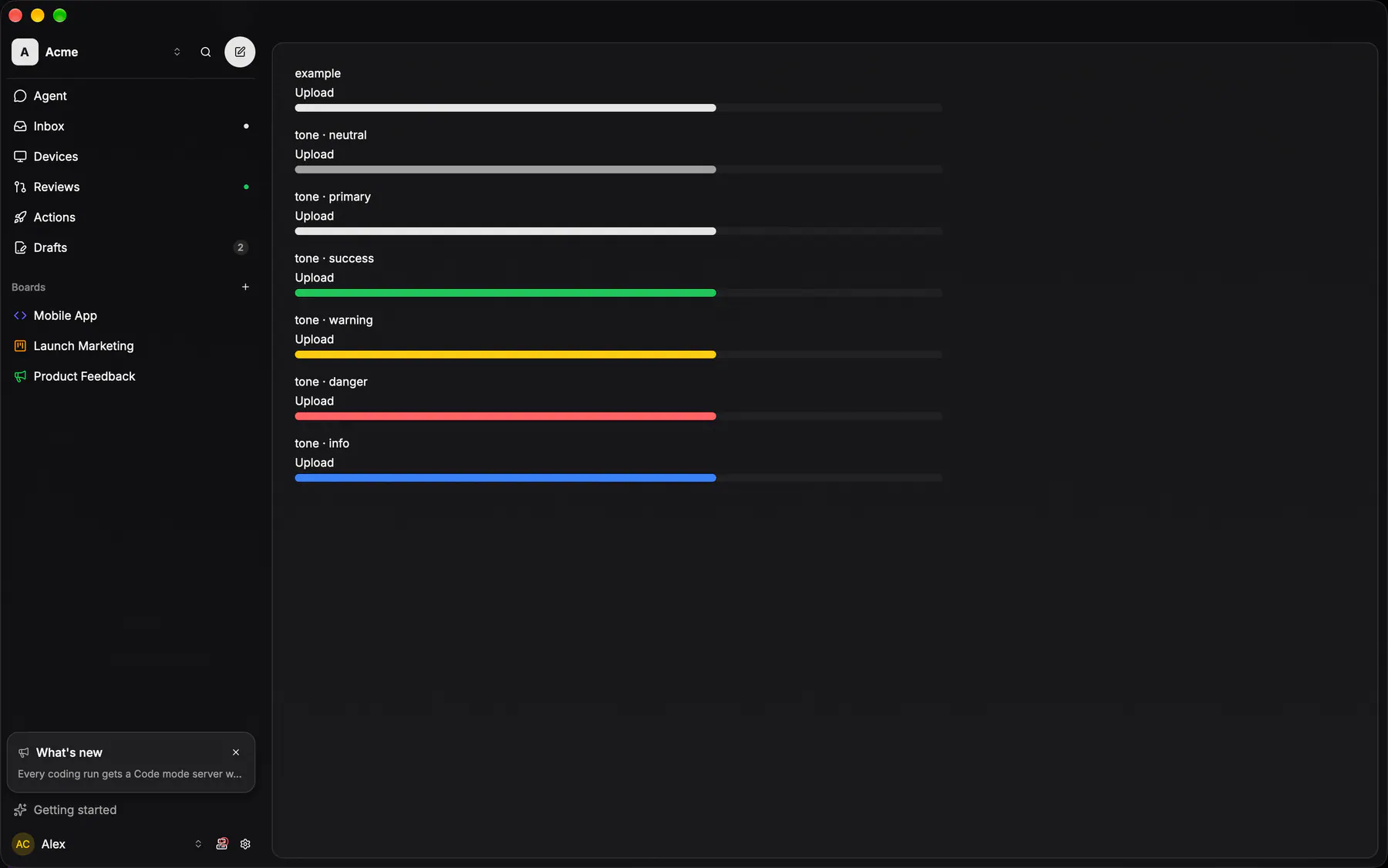

Progress rendered by the gpui renderer on Desktop — **Desktop** gpui

View exponential-ui-progress, painted by each native renderer.

Variants

tone · neutral

tone · primary

tone · success

tone · warning

tone · danger

tone · info

Props

Prop	Type	Default	Description
`value`requiredbind	`number`	–	The current amount, 0 to max.
`max`	`number`	`100`	The full amount.
`label`	`string`	–	A caption above the bar.
`tone`	`neutral \| primary \| success \| warning \| danger \| info`	`"primary"`	The fill colour tone.

Events and slots

No events, no slots. Children: none.

Accessibility

Role: progressbar
Semantics: progressbar (valuenow/valuemax, labelled by its label)

Not focusable; no keys.

Theming

Recipe parts: Progress/rootProgress/labelProgress/trackProgress/fill
Keyed by: tone:hover:pressed:focus:disabled:checked:open:selected:invalid:dragover

Themes · Write a theme
