Slider native

A range slider between min and max; bind value.

A2UI basic: Slider
Children: none

Preview

Loading the renderer…

label

min

maxrequired

step

value

createSurface + updateComponents, A2UI v0.9.

json

[
  {
    "version": "v0.9",
    "createSurface": {
      "surfaceId": "preview",
      "catalogId": "https://ui.exponential.at/catalogs/core/v1"
    }
  },
  {
    "version": "v0.9",
    "updateComponents": {
      "surfaceId": "preview",
      "components": [
        {
          "id": "root",
          "component": "Stack",
          "direction": "vertical",
          "align": "stretch",
          "children": [
            "example"
          ]
        },
        {
          "id": "example",
          "component": "Slider",
          "label": "Volume",
          "min": 0,
          "max": 100,
          "value": 40
        }
      ]
    }
  }
]

This surface through a MemoryTransport. Install and transports: React guide.

This surface through a MemoryTransport. Install and transports: SwiftUI guide.

This surface through a MemoryTransport. Install and transports: Compose guide.

This surface through a MemoryTransport. Install and transports: gpui guide.

Platforms

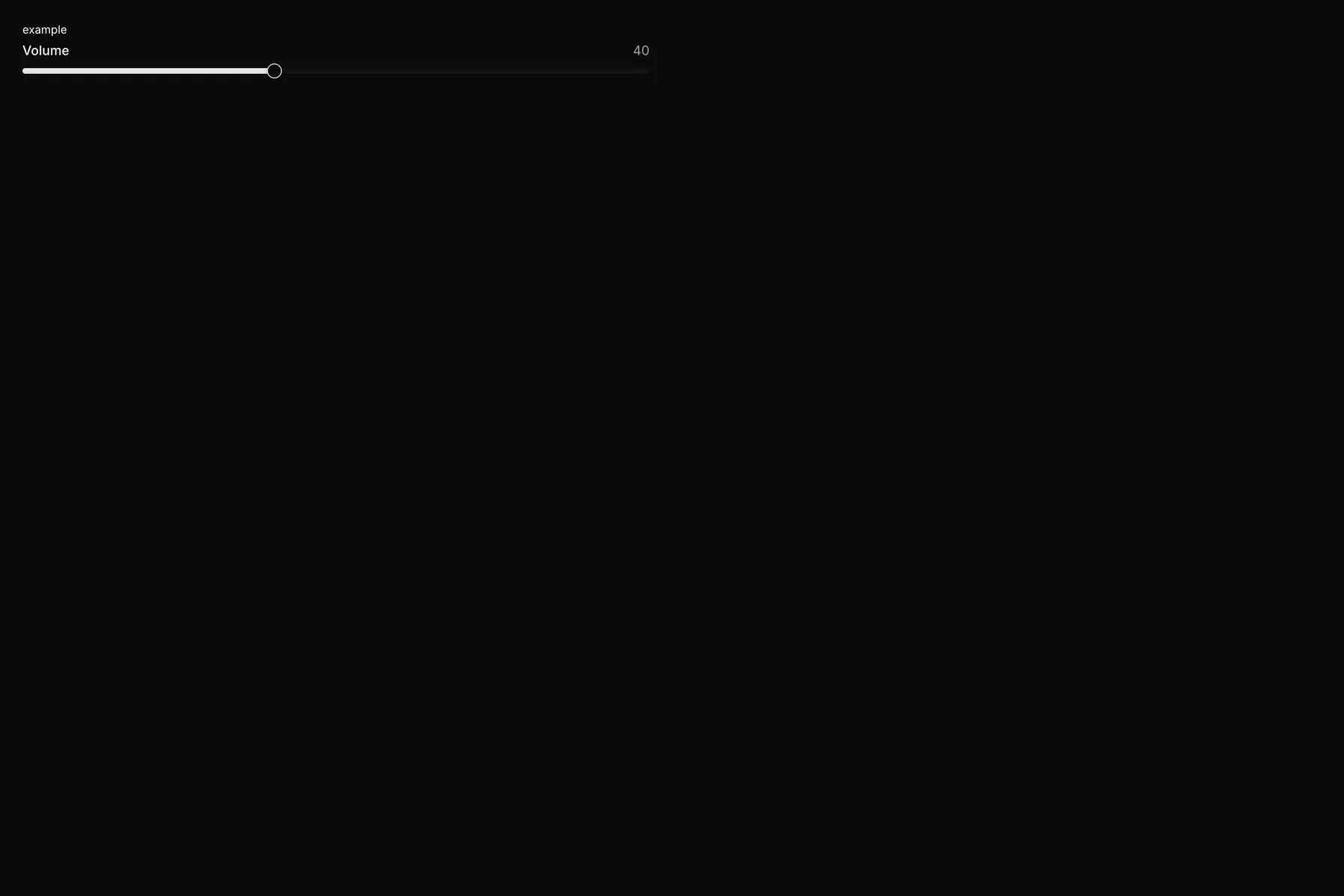

Slider rendered by the React renderer on Web — **Web** React

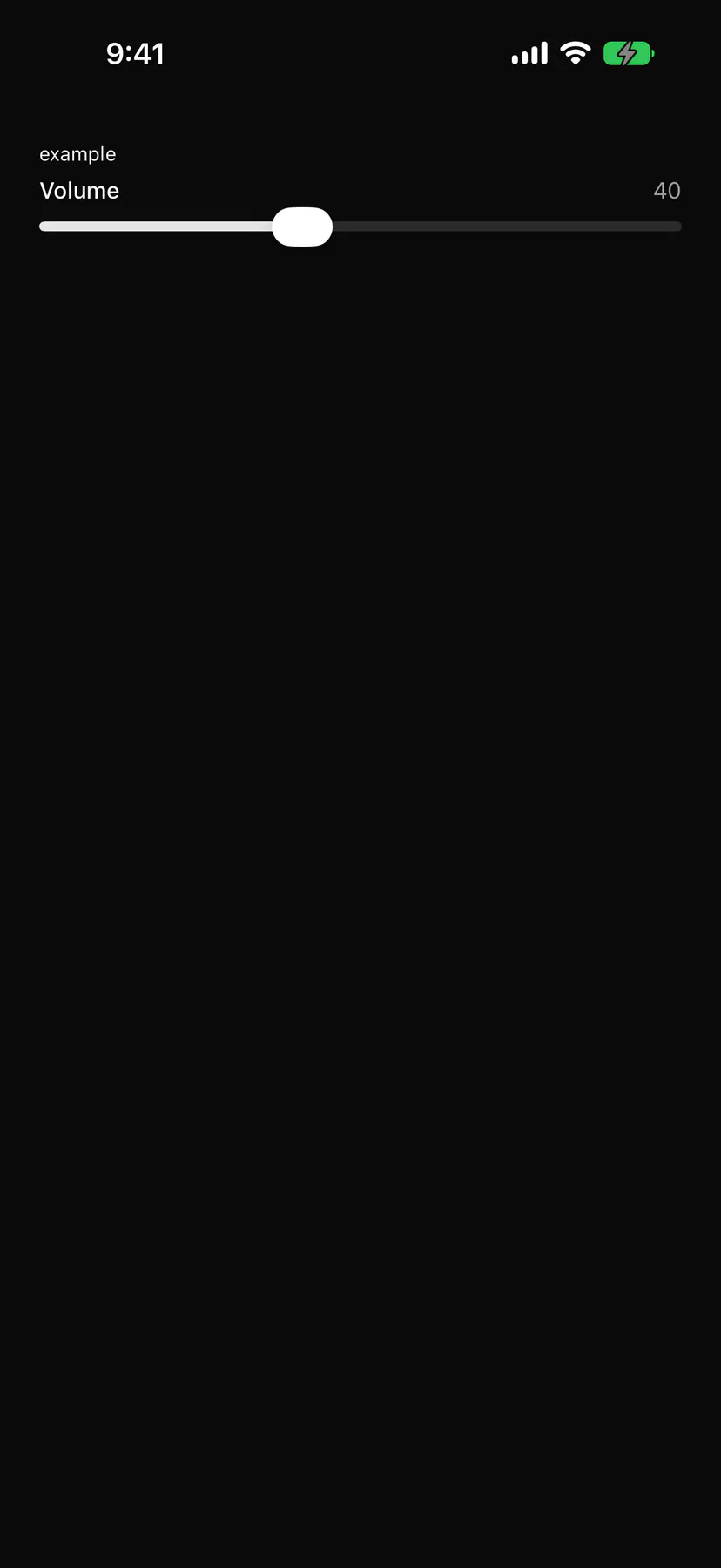

Slider rendered by the SwiftUI renderer on iOS — **iOS** SwiftUI

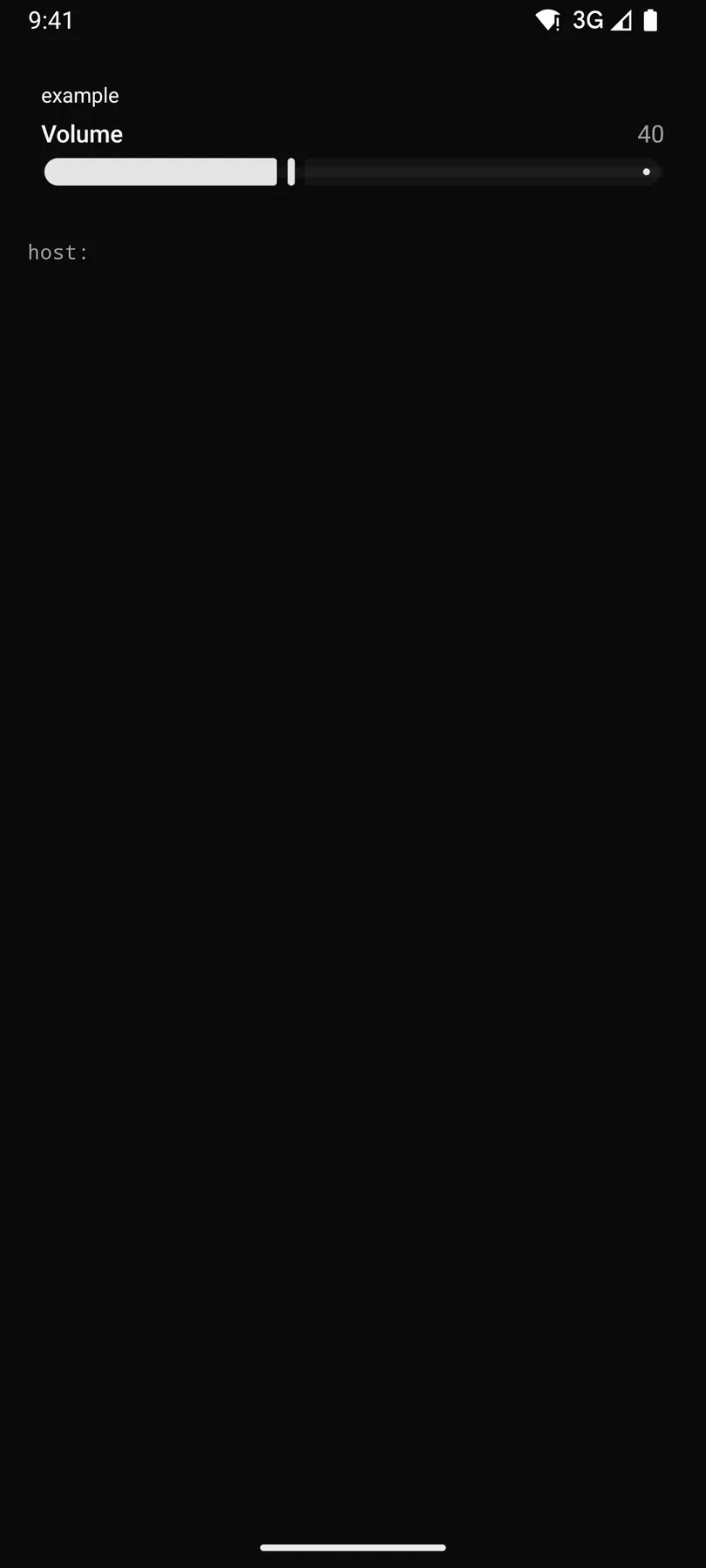

Slider rendered by the Compose renderer on Android — **Android** Compose

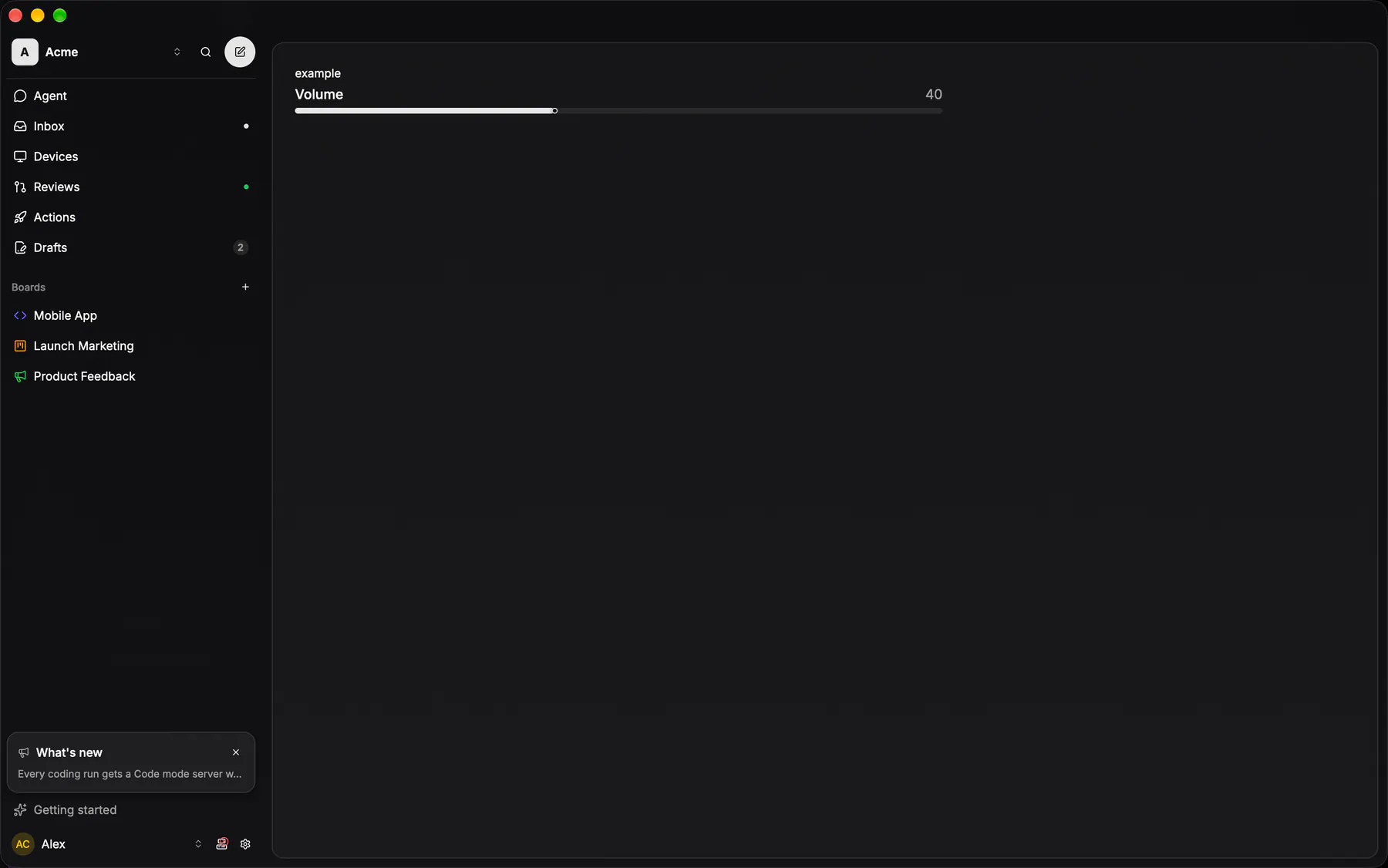

Slider rendered by the gpui renderer on Desktop — **Desktop** gpui

View exponential-ui-slider, painted by each native renderer.

Props

Prop	Type	Default	Description
`label`	`string`	–	The field label.
`min`	`number`	`0`	The lowest value.
`max`required	`number`	–	The highest value.
`step`	`number`	`1`	The increment.
`value`bind	`number`	–	The current value; bind it.

Events and slots

Name	Kind
`on.change`	event: runs an action

Accessibility

Role: slider
Semantics: slider

Keys	Action
`ArrowRightArrowUp`	+ step; ArrowLeft/ArrowDown: - step
`PageUpPageDown`	± 10 steps
`HomeEnd`	min/max

Theming

Recipe parts: Slider/rootSlider/trackSlider/rangeSlider/thumbSlider/labelSlider/valueSlider/header
Keyed by: :hover:pressed:focus:disabled:checked:open:selected:invalid:dragover

Themes · Write a theme
