Grid macrolite

An equal-column grid for cards and tiles.

Built from: Box
Children: many

Preview

Loading the renderer…

columns

gap

createSurface + updateComponents, A2UI v0.9.

json

[
  {
    "version": "v0.9",
    "createSurface": {
      "surfaceId": "preview",
      "catalogId": "https://ui.exponential.at/catalogs/core/v1"
    }
  },
  {
    "version": "v0.9",
    "updateComponents": {
      "surfaceId": "preview",
      "components": [
        {
          "id": "root",
          "component": "Stack",
          "direction": "vertical",
          "align": "stretch",
          "children": [
            "example"
          ]
        },
        {
          "id": "example",
          "component": "Grid",
          "columns": 3,
          "gap": "md",
          "children": [
            "c0-g1",
            "c0-g2",
            "c0-g3",
            "c0-g4",
            "c0-g5",
            "c0-g6"
          ]
        },
        {
          "id": "c0-g1",
          "component": "Card",
          "title": "Cell 1",
          "description": "Grid item"
        },
        {
          "id": "c0-g2",
          "component": "Card",
          "title": "Cell 2",
          "description": "Grid item"
        },
        {
          "id": "c0-g3",
          "component": "Card",
          "title": "Cell 3",
          "description": "Grid item"
        },
        {
          "id": "c0-g4",
          "component": "Card",
          "title": "Cell 4",
          "description": "Grid item"
        },
        {
          "id": "c0-g5",
          "component": "Card",
          "title": "Cell 5",
          "description": "Grid item"
        },
        {
          "id": "c0-g6",
          "component": "Card",
          "title": "Cell 6",
          "description": "Grid item"
        }
      ]
    }
  }
]

This surface through a MemoryTransport. Install and transports: React guide.

This surface through a MemoryTransport. Install and transports: SwiftUI guide.

This surface through a MemoryTransport. Install and transports: Compose guide.

This surface through a MemoryTransport. Install and transports: gpui guide.

Platforms

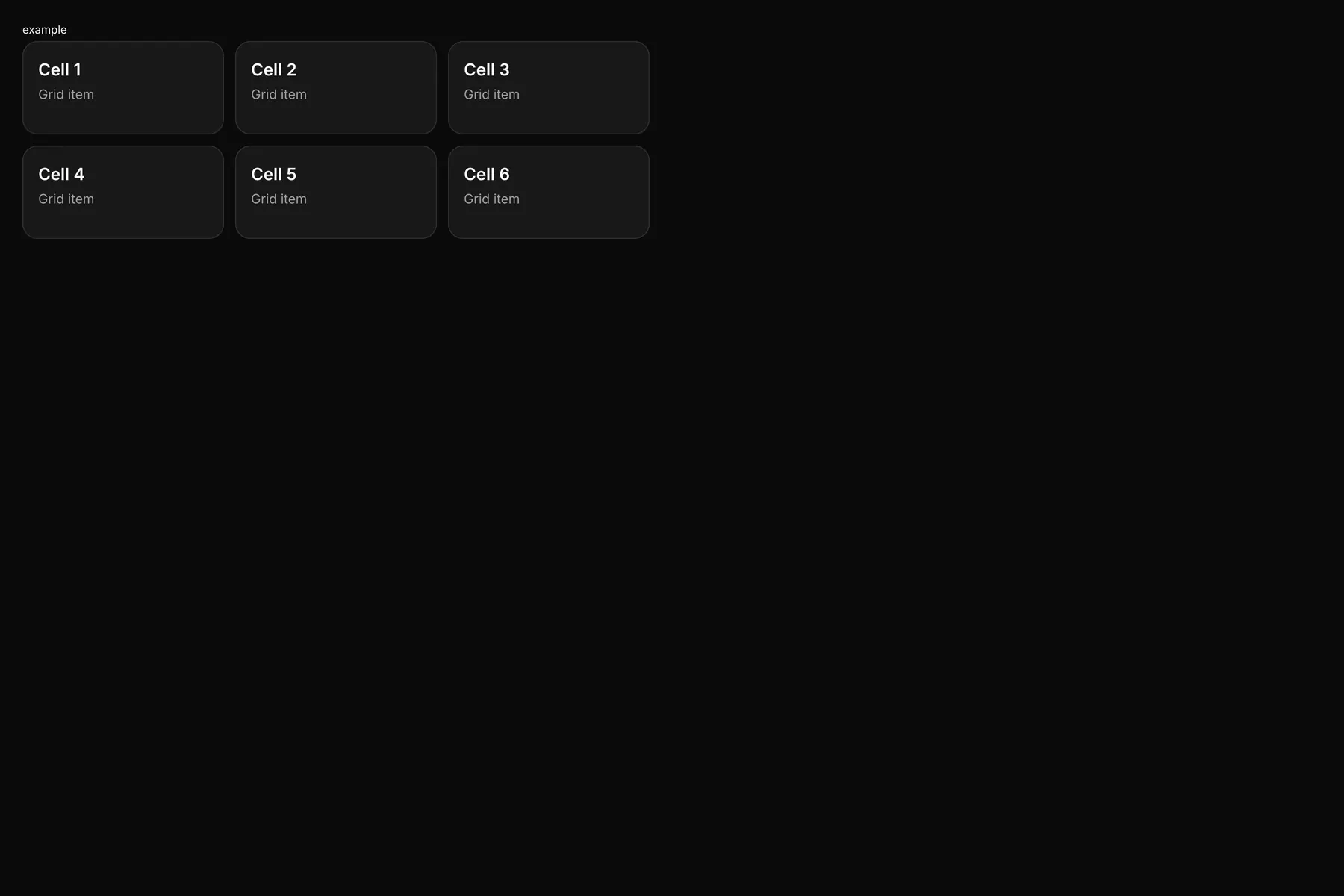

Grid rendered by the React renderer on Web — **Web** React

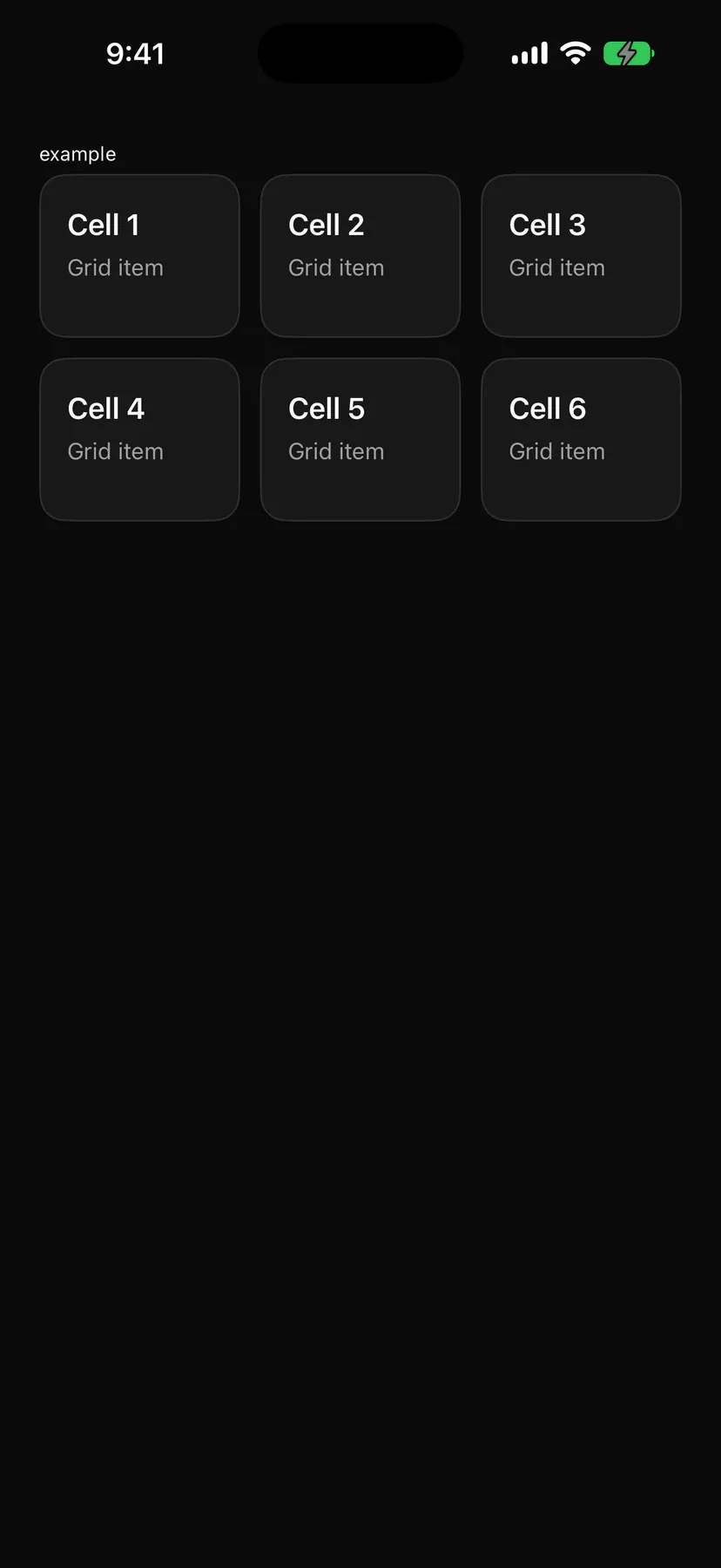

Grid rendered by the SwiftUI renderer on iOS — **iOS** SwiftUI

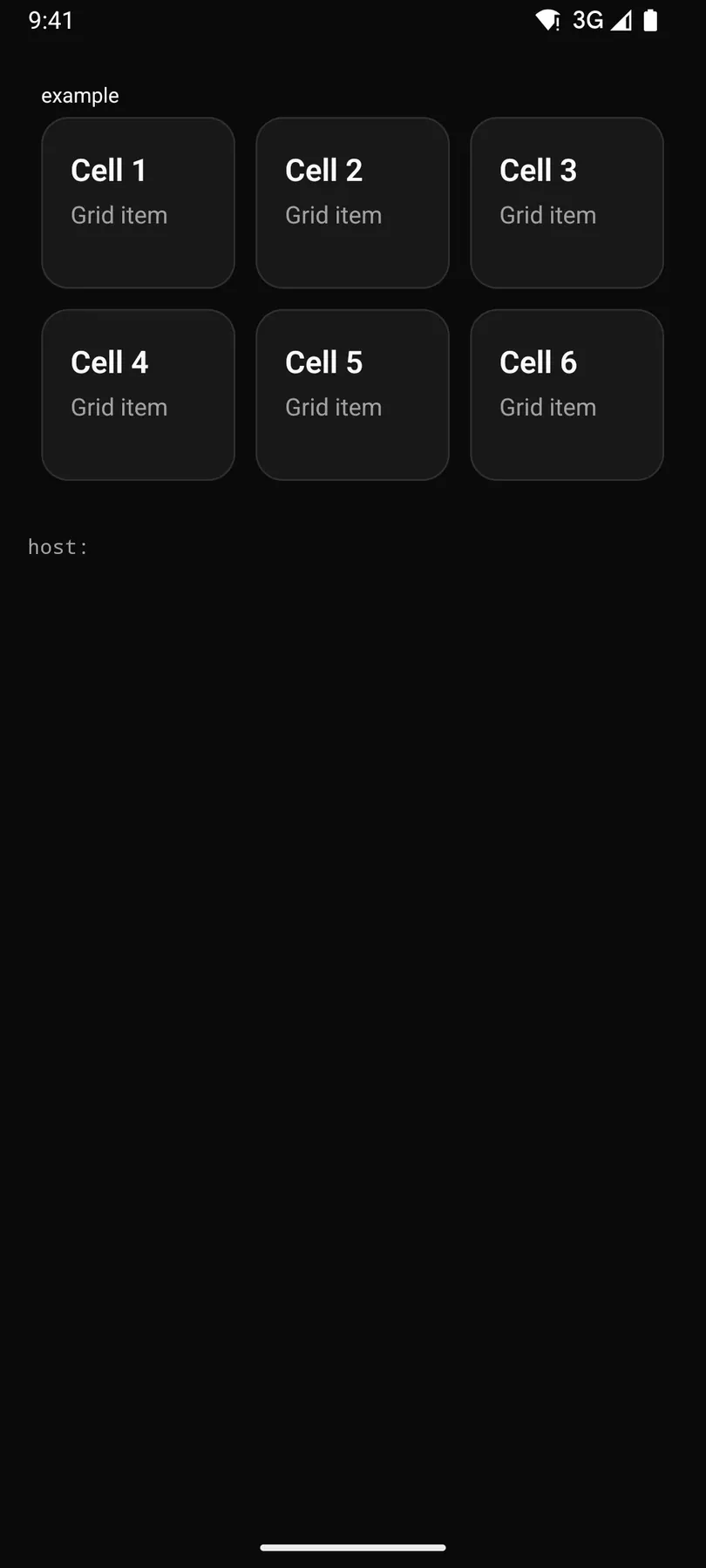

Grid rendered by the Compose renderer on Android — **Android** Compose

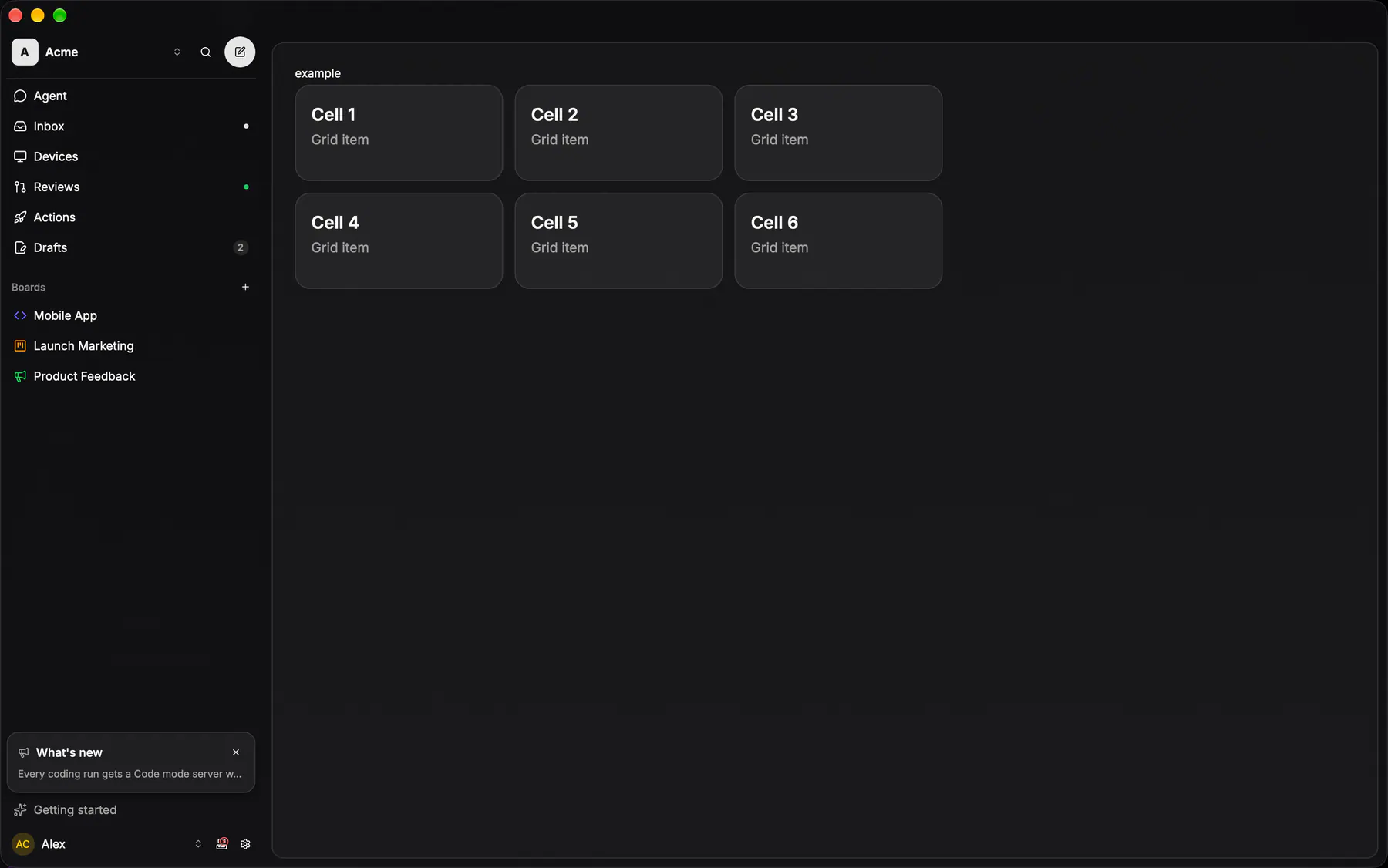

Grid rendered by the gpui renderer on Desktop — **Desktop** gpui

View exponential-ui-grid, painted by each native renderer.

Props

Prop	Type	Default	Description
`columns`resp	`number`	`2`	Equal columns 1–6 (`{base: 1, md: 2, lg: 3}`).
`gap`resp	`none \| xs \| sm \| md \| lg \| xl`	`"md"`	The space between cells.
`style`	`style`	–	Extra Box styles merged over the grid's own.

Events and slots

No events, no slots. Children: many.

Accessibility

Role: none
Semantics: none (layout only)

Not focusable; no keys.

Theming

Recipe parts: Grid/root
Keyed by: :hover:pressed:focus:disabled:checked:open:selected:invalid:dragover

Themes · Write a theme
