Sparkline macro

A tiny inline trend line of recent values, no axes or legend.

Built from: Chart
Children: none

Preview

Loading the renderer…

valuesrequired

tone

height

createSurface + updateComponents, A2UI v0.9.

json

[
  {
    "version": "v0.9",
    "createSurface": {
      "surfaceId": "preview",
      "catalogId": "https://ui.exponential.at/catalogs/core/v1"
    }
  },
  {
    "version": "v0.9",
    "updateComponents": {
      "surfaceId": "preview",
      "components": [
        {
          "id": "root",
          "component": "Stack",
          "direction": "vertical",
          "align": "stretch",
          "children": [
            "example"
          ]
        },
        {
          "id": "example",
          "component": "Sparkline",
          "values": [
            1,
            3,
            2,
            5,
            4
          ]
        }
      ]
    }
  }
]

This surface through a MemoryTransport. Install and transports: React guide.

This surface through a MemoryTransport. Install and transports: SwiftUI guide.

This surface through a MemoryTransport. Install and transports: Compose guide.

This surface through a MemoryTransport. Install and transports: gpui guide.

Platforms

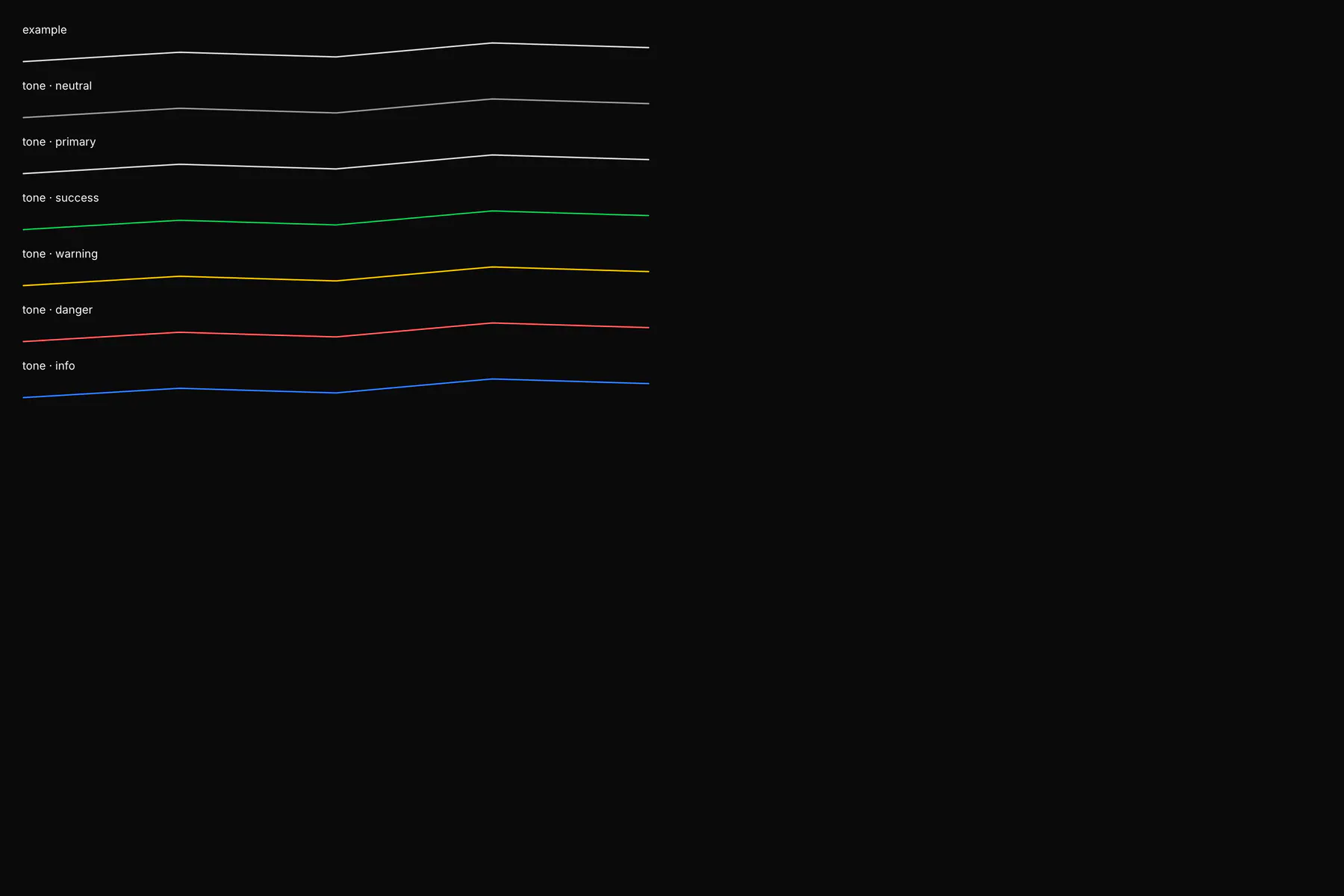

Sparkline rendered by the React renderer on Web — **Web** React

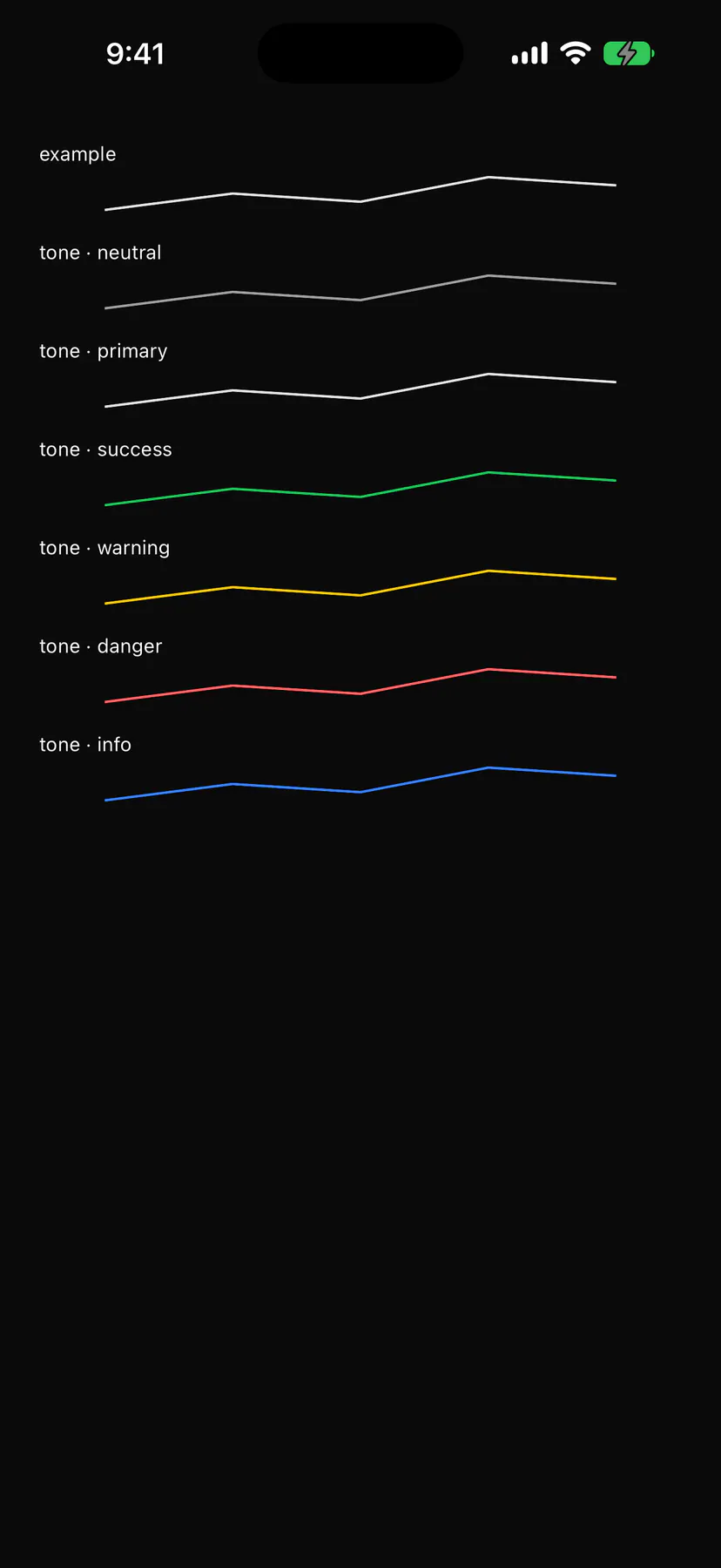

Sparkline rendered by the SwiftUI renderer on iOS — **iOS** SwiftUI

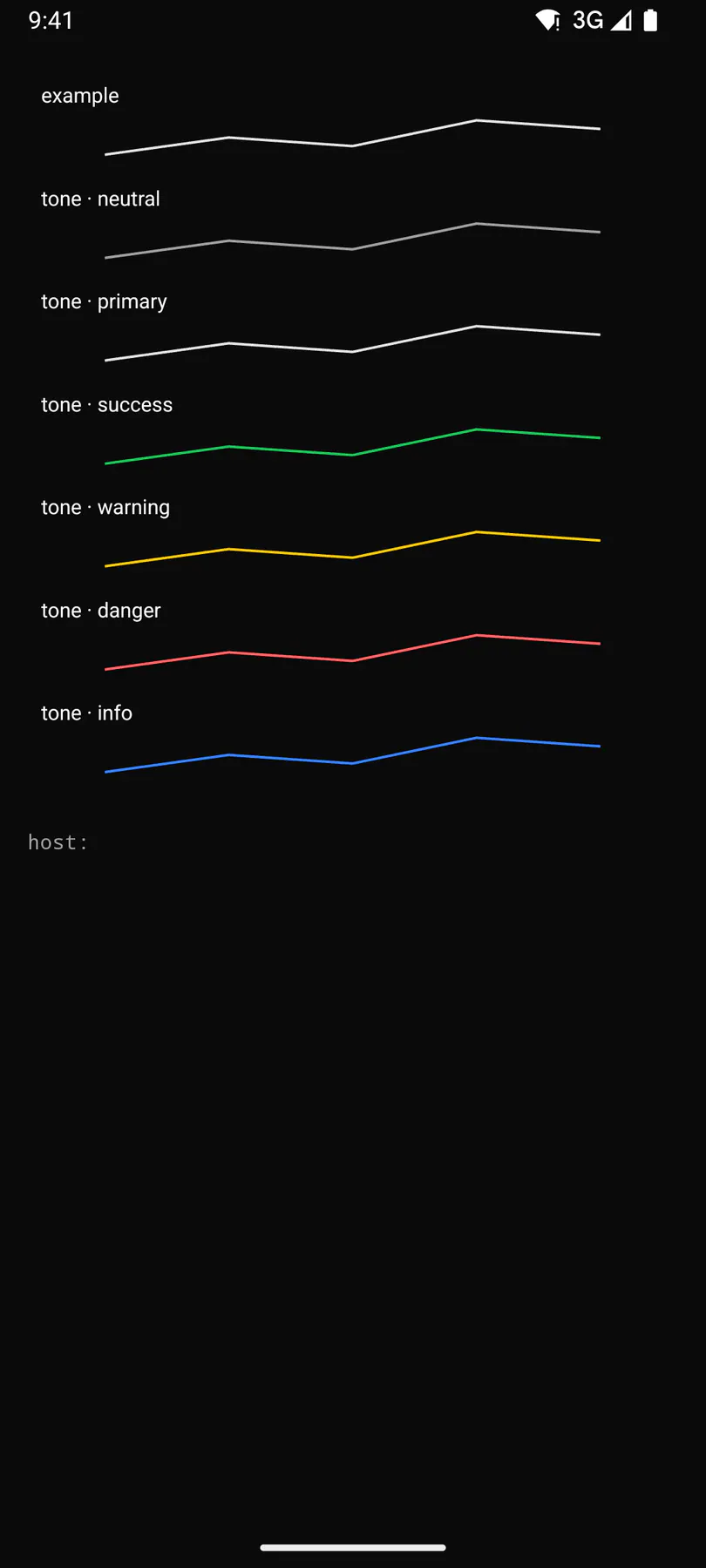

Sparkline rendered by the Compose renderer on Android — **Android** Compose

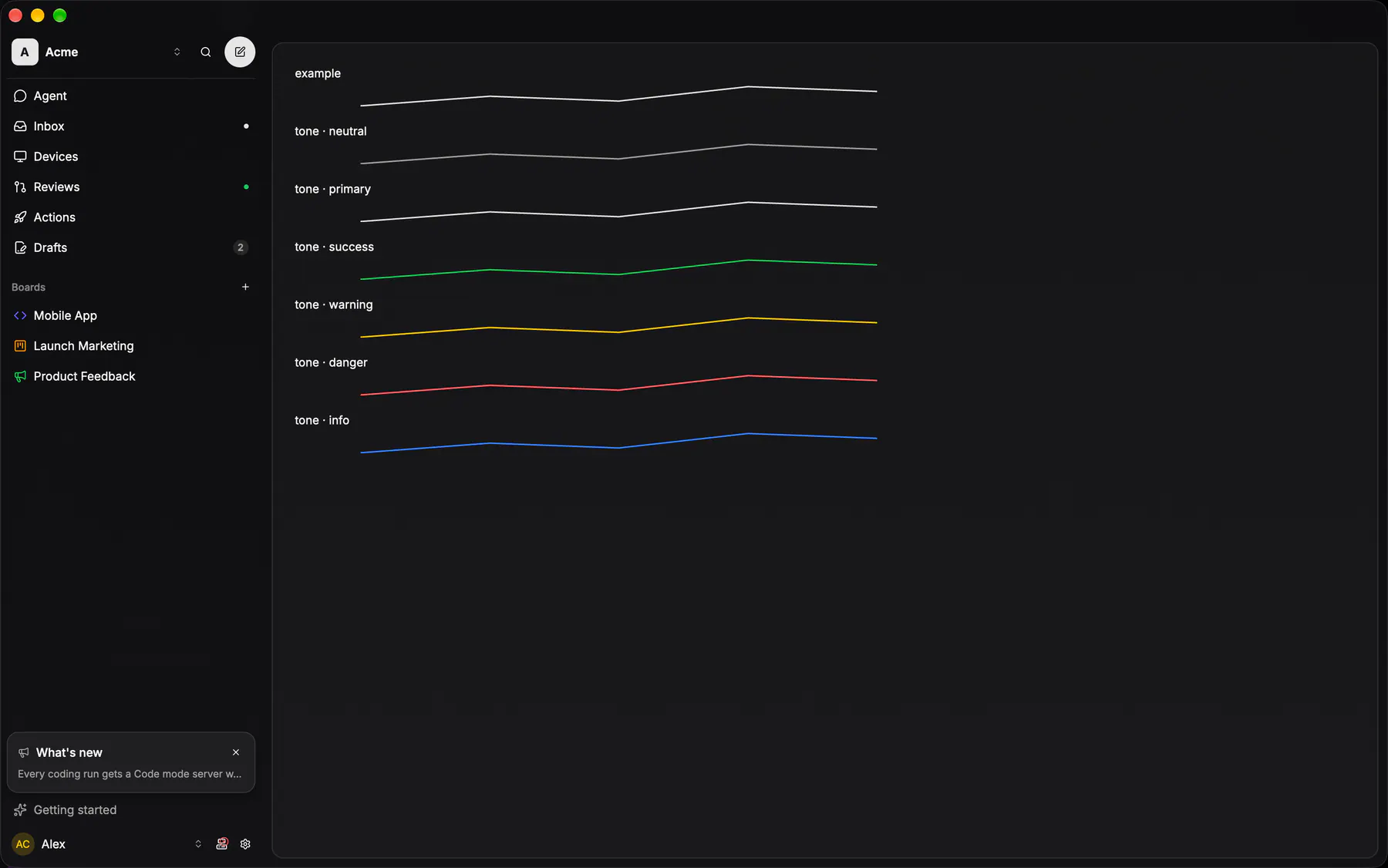

Sparkline rendered by the gpui renderer on Desktop — **Desktop** gpui

View exponential-ui-sparkline, painted by each native renderer.

Variants

tone · neutral

tone · primary

tone · success

tone · warning

tone · danger

tone · info

Props

Prop	Type	Default	Description
`values`requiredbind	`[number]`	–	The points, oldest first.
`tone`	`neutral \| primary \| success \| warning \| danger \| info`	`"primary"`	The line colour tone.
`height`	`number`	`24`	The height in px.

Events and slots

No events, no slots. Children: none.

Accessibility

Role: img
Semantics: img with a generated summary (first, last, min, max). The Chart painter names it with sparklineSummary (first, last, min, max).

Not focusable; no keys.

Theming

Recipe parts: Sparkline/root
Keyed by: tone:hover:pressed:focus:disabled:checked:open:selected:invalid:dragover

Themes · Write a theme
